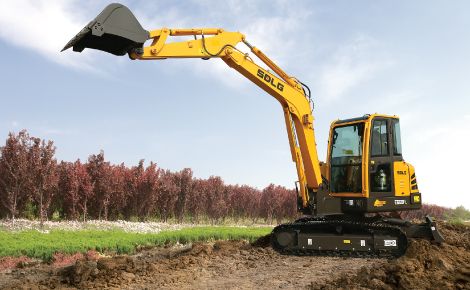

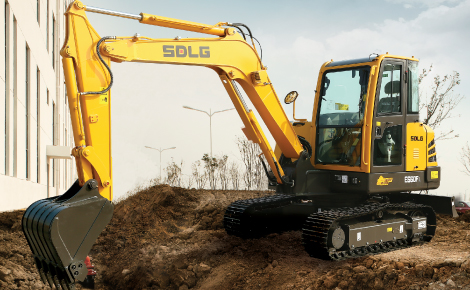

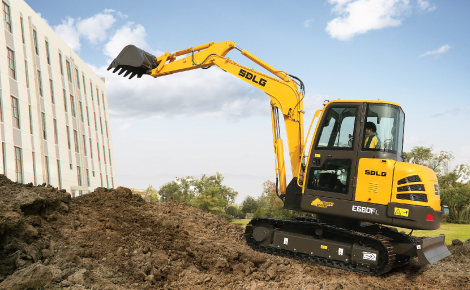

E660FL – SDLG Excavator
Operating Weight – 6,050 kg
Bucket Capacity – 0.21 m³
Engine Model – Yanmar 4TNV98-EXSLGC
Rated Power – 38.3 kW
Maximum Excavation Force – 45 kN
Swing Speed – 11.5 rpm
Traveling Speed – 2.4 / 4.8 km/h
Maximum Digging Radius – 5,990 mm
Maximum Digging Depth – 3,846 mm
Maximum Digging Height – 5,743 mm
Overall Dimensions (L×W×H) – 5,930 × 1,960 × 2,620 mm
Fuel Tank Capacity – 135 L
Description
Engine Performance: Powered by the Yanmar 4TNV98-EXSLGC engine, the E660FL delivers 38.3 kW of power. The four-valve structure and large air intake ensure full combustion and low energy consumption.
Hydraulic System: The load-sensing hydraulic system allows the main control valve to operate independently of the load, providing precise control and high work efficiency.
Operator Comfort: Equipped with a cab featuring a skylight and wide field of vision. Sound-absorbing materials reduce noise, enhancing operator comfort.
Durability and Maintenance: The reinforced upper frame structure ensures rigidity and uniform load distribution. Filters are centrally located for easy maintenance, and the engine fan belt has an automatic tension function to reduce downtime.
