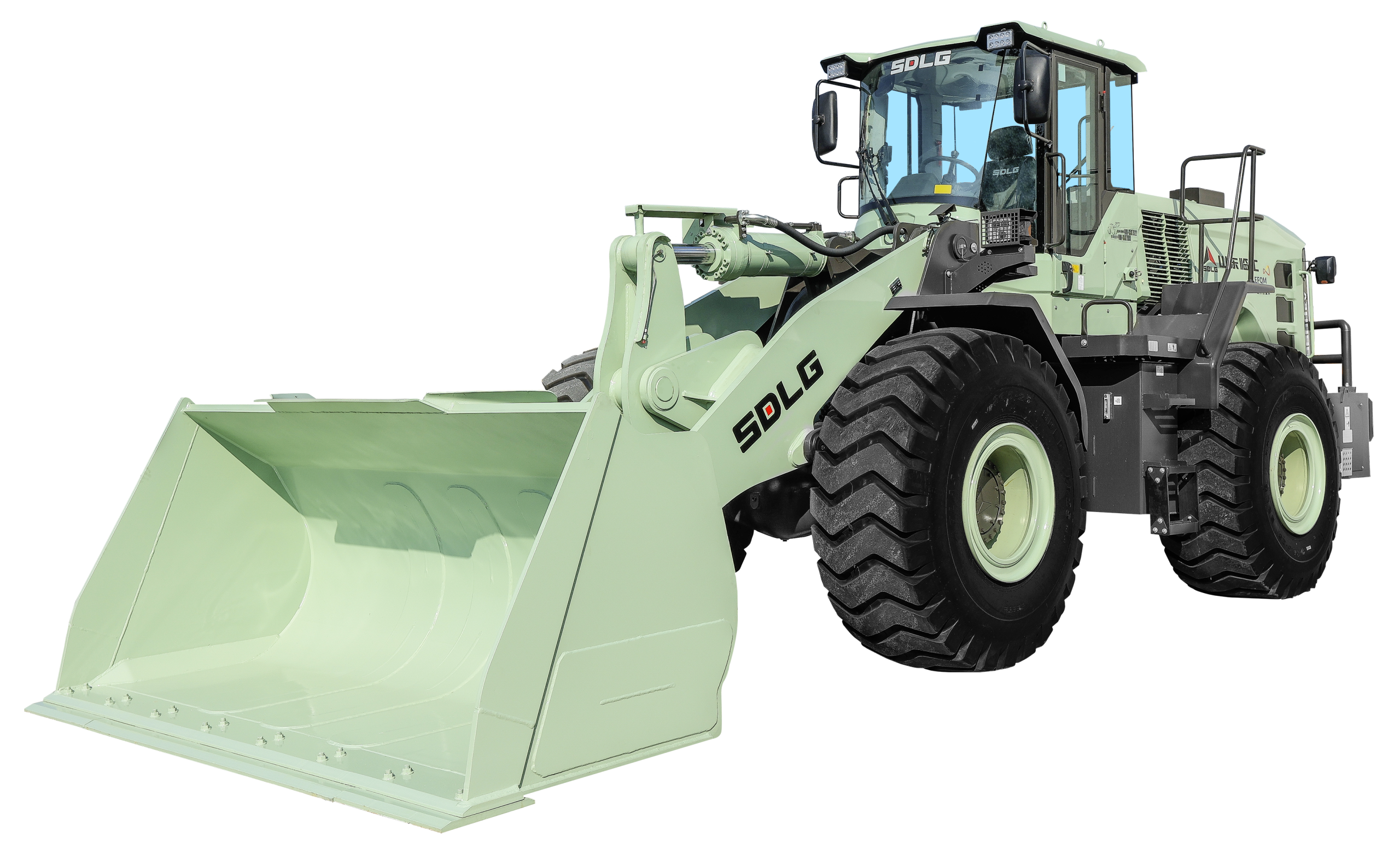

L968HEV – SDLG Electric products
Operating Weight – 22,300 kg
Bucket Capacity – 3.0–6.0 m³
Rated Load – 6,500 kg
Dimensions (L×W×H) – 9,590 × 3,100 × 3,550 mm
Wheelbase – 3,500 mm
Max. Dumping Height – 3,560 mm
Dumping Distance – 1,290 mm
Steering Angle – 38°
Max. Tractive Force – 180 kN
Max. Breakout Force – 200 kN
Gears – Forward 2, Reverse 1
Total Cycle Time – 10.3 seconds
Description
High Efficiency: Energy-saving and efficient, offering a fast return on investment with dual-channel braking energy recovery technology.
Advanced Battery System: The battery is reliable, long-lasting, and energy-efficient, with a heating film at the bottom to withstand external environmental changes.
Safety Features: The battery box is designed for water and electricity separation, ensuring high safety and reliability with a three-level safety lock and leakage protection.
Enhanced Braking System: High braking pressure and large braking torque make it more reliable, with no need to change brake oil, reducing maintenance costs.
Operator Comfort: Features a high-end suspension seat adjustable in multiple angles and dimensions, along with a colorful multi-functional instrument for a luxurious experience.
Efficient Control: The electronically controlled pilot handle is professionally adjusted for stable bucket operation, high filling coefficient, and easy, powerful shoveling.
